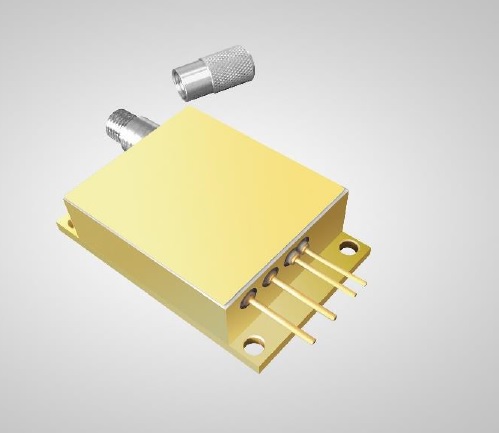

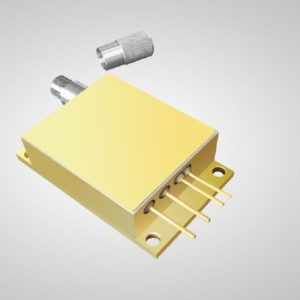

Fiber-coupled laser diode from BWT
K808DAECN-30.00W
For more than 20 years BWT develops and manufactures fiber-coupled laser diodes for medical applications, as pump module for DPSS- and fiber lasers or as direct laser source for laser material processing applications. With more than 900 employees (15 % in R&D) and five lacations in China, BWT is one of the global leading company in this industry.
Applications
Pumping DPSS lasers
Laser material processing
Laser material processing
Benefits
ISO 9001:2015 certified
100% Outgoing inspection
100% vertical integrated and fully automated processes
cost-efficient due to vertical integration
Local technical support by BWT Germany in Mainz
100% Outgoing inspection
100% vertical integrated and fully automated processes
cost-efficient due to vertical integration
Local technical support by BWT Germany in Mainz
- Specifications
- Data Sheet
- Videos
- Additional Products
Additional information
Manufacturer | BWT |
---|---|
Part Number | K808DAECN-30.00W |
Product | Fiber-coupled laser diode |
Wavelength nm | 808 |
Wavelength tolerance nm | +/-3 |
Output Power | 30 W |
Type | laser module |
Package | AE |
Fiber µm | 400 |
Line Width nm | 3 |
Pulse Width ns | cw |
Repetition Rate MHz | cw |
Thermistor | Yes |
Pluggable Fiber | Yes |
